Online CNC Machining
Parts Customization Service
Request an online quote today.
Certifications: ISO9001:2015 | AS9100D
CNC Milling
CNC milling is a subtractive machiningprocess that uses different types ofcutting tools and 3-, 4-, and 5-axismilling machines to remove materialfrom solid plastic and metal blocks toproduce a variety of final part shapeswith different geometries as per designrequirements

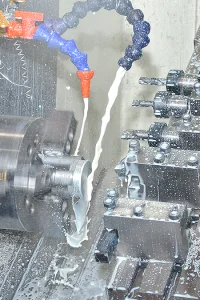

CNC Turning
CNC turning is a highly efficienttechnique for producing cylindricalcomponents from metal or plasticbars and tubes, such as shafts andworms. By incorporating live tooling.complex geometries can also be milledsimultaneously, further enhancing themanufacturing process.
Years Experiences
CNC Machines
CNC Parts Made Monthly
Online Service
Why choose us for custom CNC machining?
Top four reasons:
Service
Our team provides one-stop customized, innovative solutions to help you achieve your business goals. We have a professional after-sales department, committed to providing customers with the best quality service and the fastest response time. If you are not satisfied, we will provide you with a satisfactory after-sales solution.
Equipment
We use the most advanced CNCfive axis milling machine equipment, such as HELITRONICVISION 700 from Water Company and Intearexi-200S multifunctional lathe equipmentfrom Mazak Company, to ensure accurate and efficient processing of products for you.
Product Quality
Our team has very professional and experienced procurement,production and testing departments.We will strictly controlproduct quality from four aspects: material selection,processingtechnology and process control,quality inspection, and comprehensive testing.
Delivery Guarantee
Our team provides one-stop customized, innovative solutions to help you achieve your business goals. We have a professional after-sales department, committed to providing customers with the best quality service and the fastest response time. If you are not satisfied, we will provide you with a satisfactory after-sales solution.
Custom Online CNC Machining Services
Your one-stop service expert
- Quote Reply：10s
- MOQ：1
- Tolerances down to±0.005mm
- Machined parts as fast as 1 day
Materials for Custom CNC Machining Parts
We offer instant quotes for over 100 metals and plastics, allowing you to choose from a wide range of materials for your CNC machining needs.
- Aluminium 2007 / 3.1645 / Al-CuMgPb
- Aluminium 2017A / 3.1325 / Al-Cu4Mg
- Aluminium 6060 / 3.3206 / Al-MgSi
- Aluminium 6061 / 3.3211 / Al-Mg1SiCu
- Aluminium 6082 / 3.2315 / Al-Si1Mg
- Aluminium 7075 / 3.4365 / Al-Zn6MgCu
- Copper E-Cu57 / 2.0060 / E-Cu58 / 2.0065
- Brass Ms58 / 2.0401 / CuZn39Pb3
- Stainless Steel 303 / 1.4305 / X10CrNiS18-9
- Stainless Steel 304 / 1.4301 / X5CrNi18.10
- Stainless Steel 304L / 1.4307 / X2CrNi18-9
- Stainless Steel 316L / 1.4404 / X2CrNiMo17-12-2
- Stainless Steel 316Ti / 1.4571 / X6CrNiMoTi17-12-2
- Titan Grade 2 / 3.7035
- Titan Grade 5 / 3.7164 / 3.7165 / Ti-6Al-4V
- ABS
- Acrylic
- Industrial PEEK
- Nylon 6 / PA 6
- PC (Polycarbonate)
- PEEK glass-filled
- Polypropylene (PP)
- POM / Delrin acetal
- PTFE / Teflon
- PVDF / Polyvinylidene fluoride
- UHMW PE / Ultra-high-molecular-weight polyethylene
Surface Finishes for CNC Machining
| Name | Description | Materials | Color | Texture | |
|---|---|---|---|---|---|

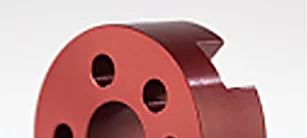

| Alodine | Anodizing improves corrosion resistance, enhancing wear resistance and hardness, and protecting the metal surface. Widely used in mechanical parts, aircraft, and automobile parts, precision instruments, etc. | Aluminum | Clear, black, grey, red, blue, gold. | Smooth, matte finish. |

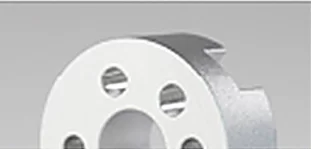

| Bead Blasting | Bead blasting results in parts with a smooth surface with a matte texture. Used mainly for visual applications and can be followed by other surface treatments. | ABS, Aluminum, Brass, Stainless Steel, Steel | n/a | Matte |

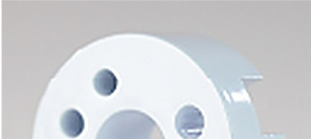

| Powder Coating | Powder coating is a type of coating that is applied as a free-flowing, dry powder. Unlike conventional liquid paint which is delivered via an evaporating solvent, powder coating is typically applied electrostatically and then cured under heat or with ultraviolet light. | Aluminum, Stainless Steel, Steel | Black, any RAL code or Pantone number | Gloss or semi-gloss |

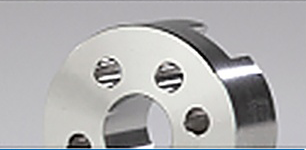

| Electroplating | Electroplating can be functional, decorative or corrosion-related. Many industries use the process, including the automotive sector, in which chrome-plating of steel automobile parts is common. | Aluminum, steel, stainless steel | n/a | Smooth, glossy finish |

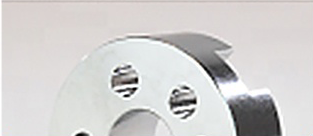

| Polishing | Polishing is the process of creating a smooth and shiny surface, either through physical rubbing of the part or by chemical interference. The process produces a surface with significant specular reflection, but in some materials is able to reduce diffuse reflection. | Aluminum, Brass, Stainless Steel, Steel | n/a | Glossy |

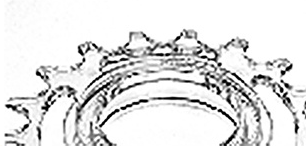

| More Surface Treatment | Describe your needs, we will provide you with the best solution | customized | customized | customized |
Precision Machining Tolerances
| Standards | CNC Turning | CNC Milling |
|---|---|---|
Maximum Part Size | 200×500 mm 7.9×19.7 in. | 4000×1500×600 mm 157.5×59.1×23.6 in. |
Minimum Part Size | 2×2 mm 0.079×0.079 in. | 4×4 mm 0.1×0.1 in. |
Minimum Feature Size | Φ 0.50 mm Φ 0.00197 in. | Φ 0.50 mm Φ 0.00197 in. |
Standard Tolerances | Metals: ISO 2768-f Plastics: ISO 2768-m | Metals: ISO 2768-f Plastics: ISO 2768-m |
Linear Dimension | +/- 0.025 mm +/- 0.001 in. | +/- 0.025 mm +/- 0.001 in. |
Hole Diameters
(Not Reamed) | +/- 0.025 mm +/- 0.001 in. | +/- 0.025 mm +/- 0.001 in. |
Shaft Diameters | +/- 0.025 mm +/- 0.001 in. | +/- 0.025 mm +/- 0.001 in. |
Edge Condition | Sharp corner will be removed in the form of a chamfer or radius. The size of the chamfer, or resulting radii, must be indicated on the drawing. | |
Threads and Tapped Holes | Diameter: Φ 1.5-5 mm, depth: 3×diameter Diameter: Φ 5 mm or more, depth: 4-6×diameter (customized) | Diameter: Φ 1.5-5 mm, depth: 3×diameter Diameter: Φ 5 mm or more, depth: 4-6×diameter (customized) |
Text | DaZao can use laser marking to create standard text for CNC turned parts. | Minimum width of 0.5 mm, depth of 0.1 mmDaZao can use CNC engraving or laser carving to create standard text based on customers’ requirements. |
Lead Time | 5 business days | 5 business days |
CNC Machining Case Studies

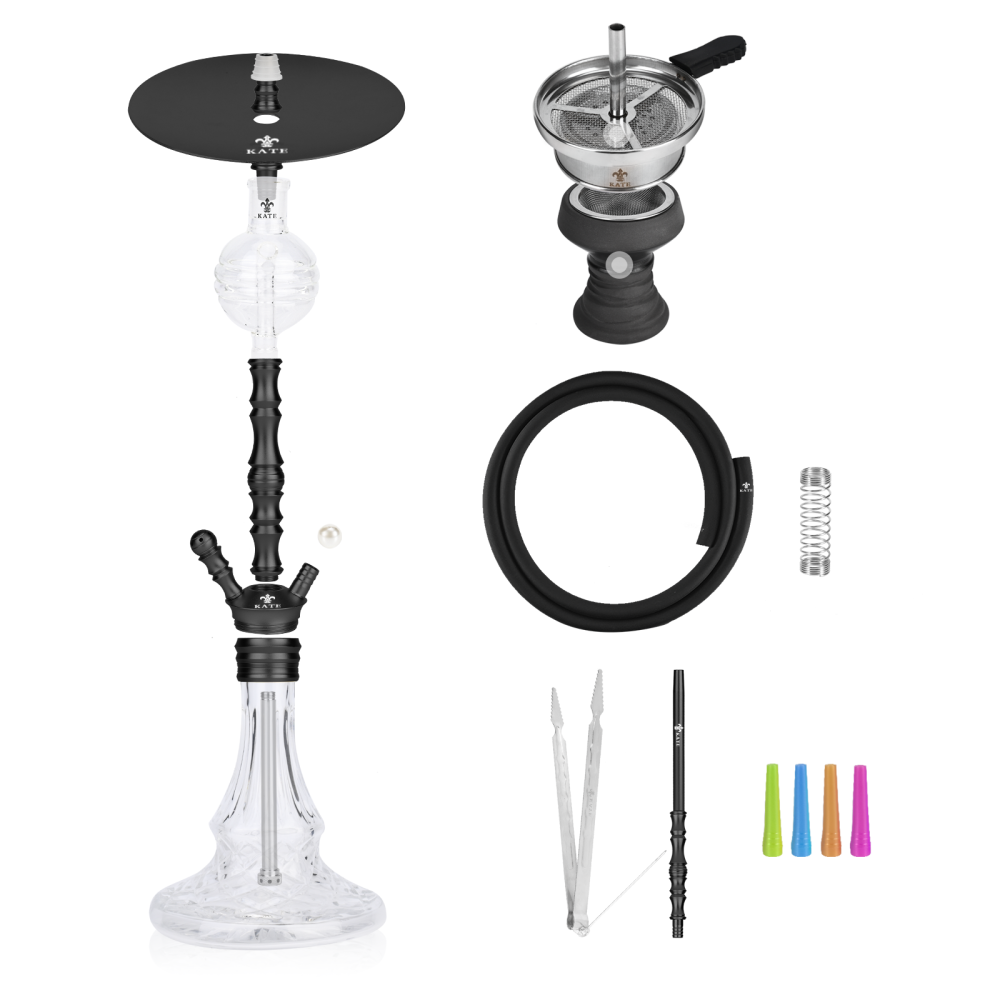

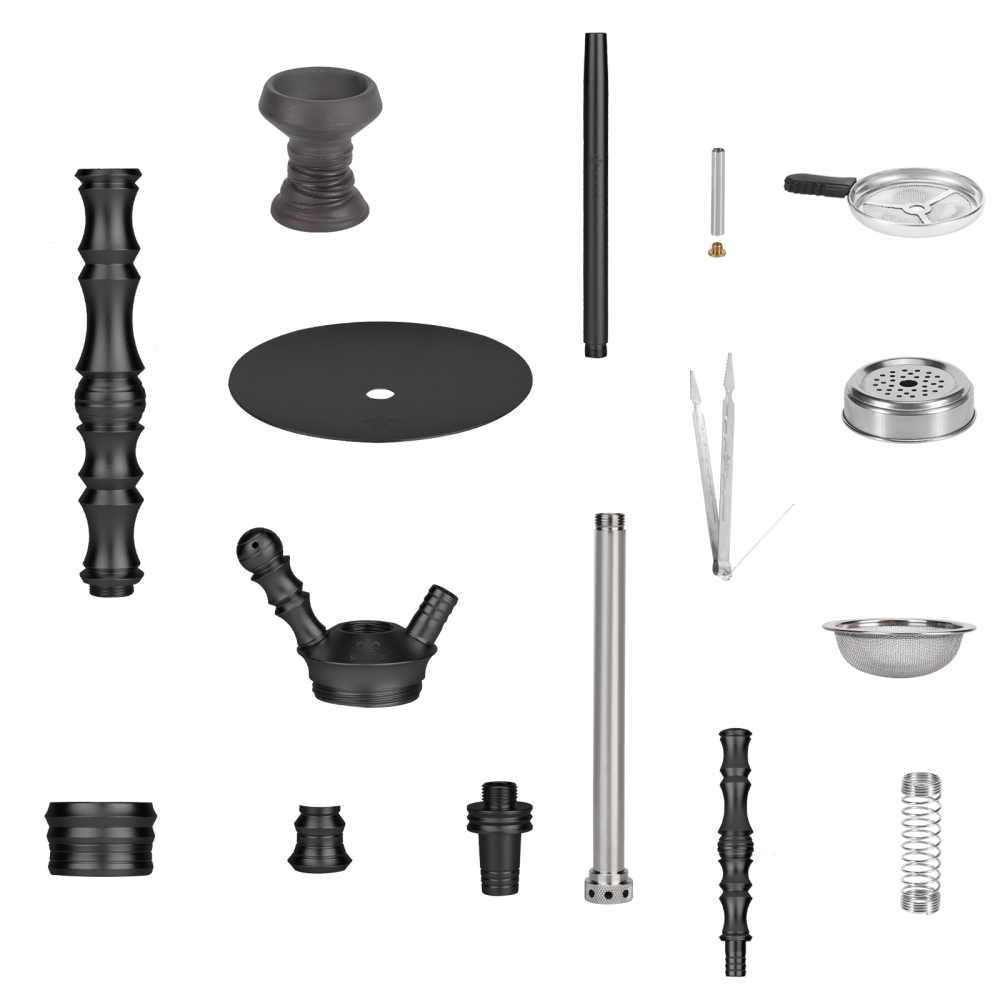

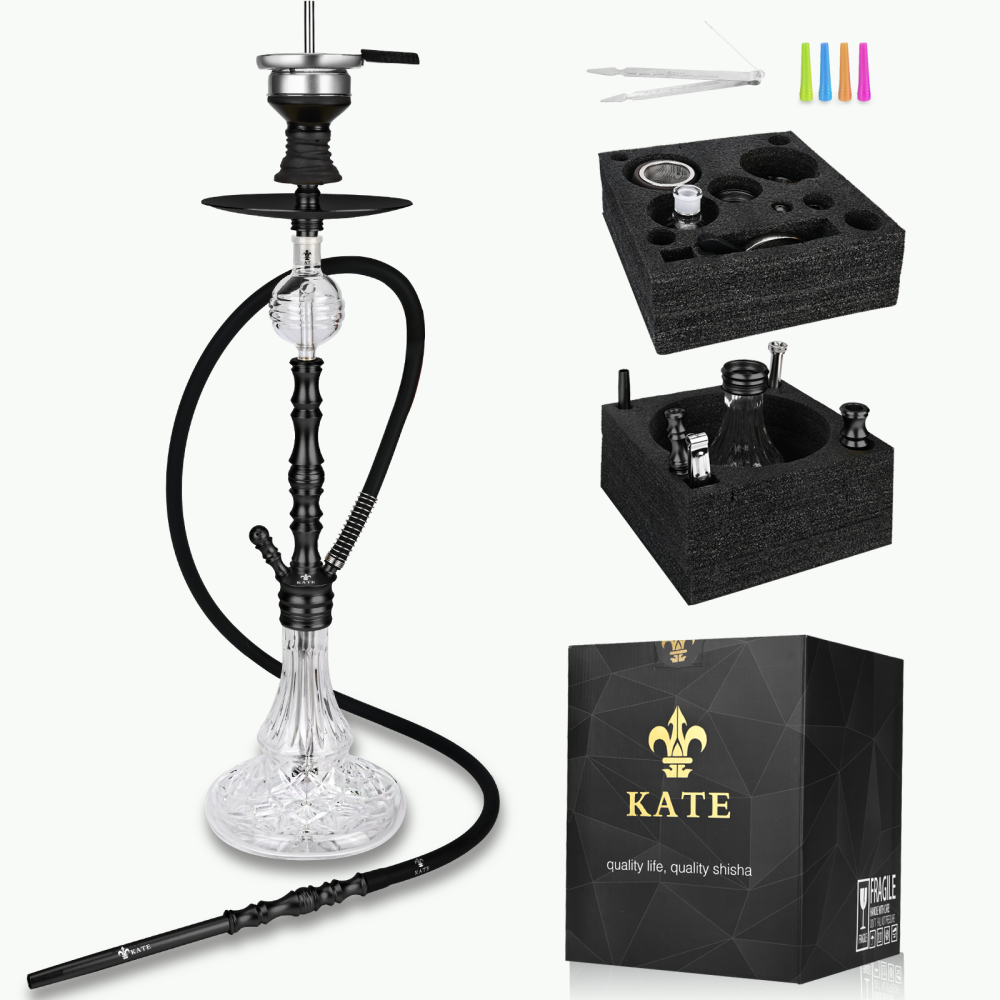

As a service provider specializing in the production of non-standard products, it is a pleasure to cooperate with KATE, the popular hookah brand on Amazon. Initially KATE hired us to produce metal parts for their hookah equipment, after realizing our one-stop service capability, they trusted us for the entire production and packaging process, resulting in a successful product that was selling well on Amazon.
- ±0.005MM tolerance
- 1000 sets combination in 6 weeks
Complete Your CNC Machined Parts
4 Easy Steps
Upload CAD File
Quotation And Design Analysis
Order Confirmation
Parts Shipped

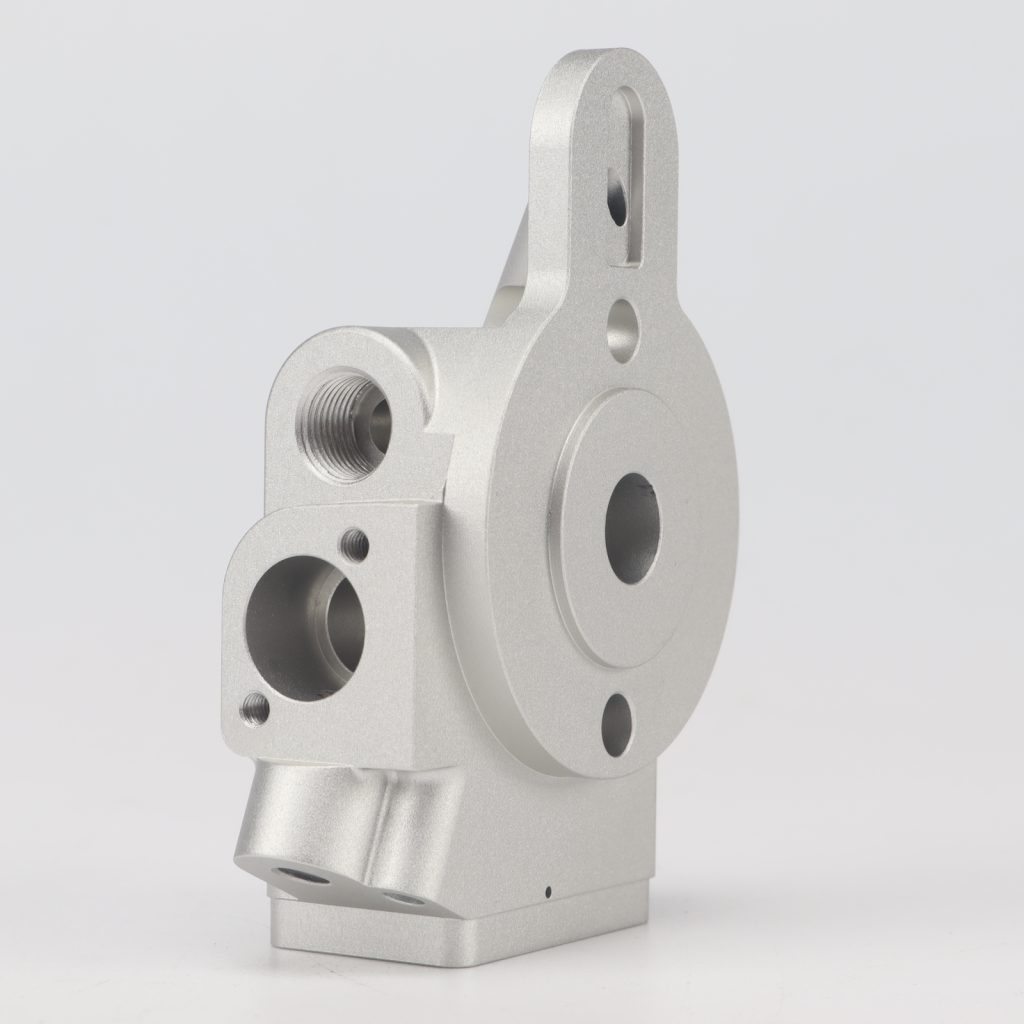

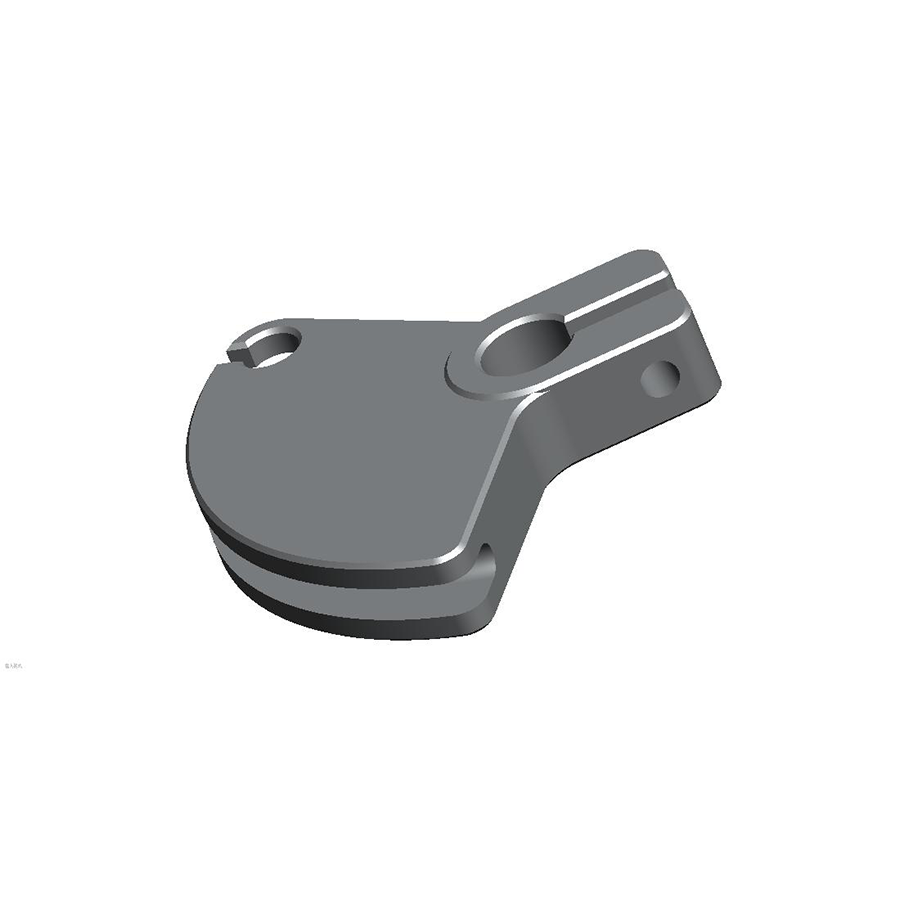

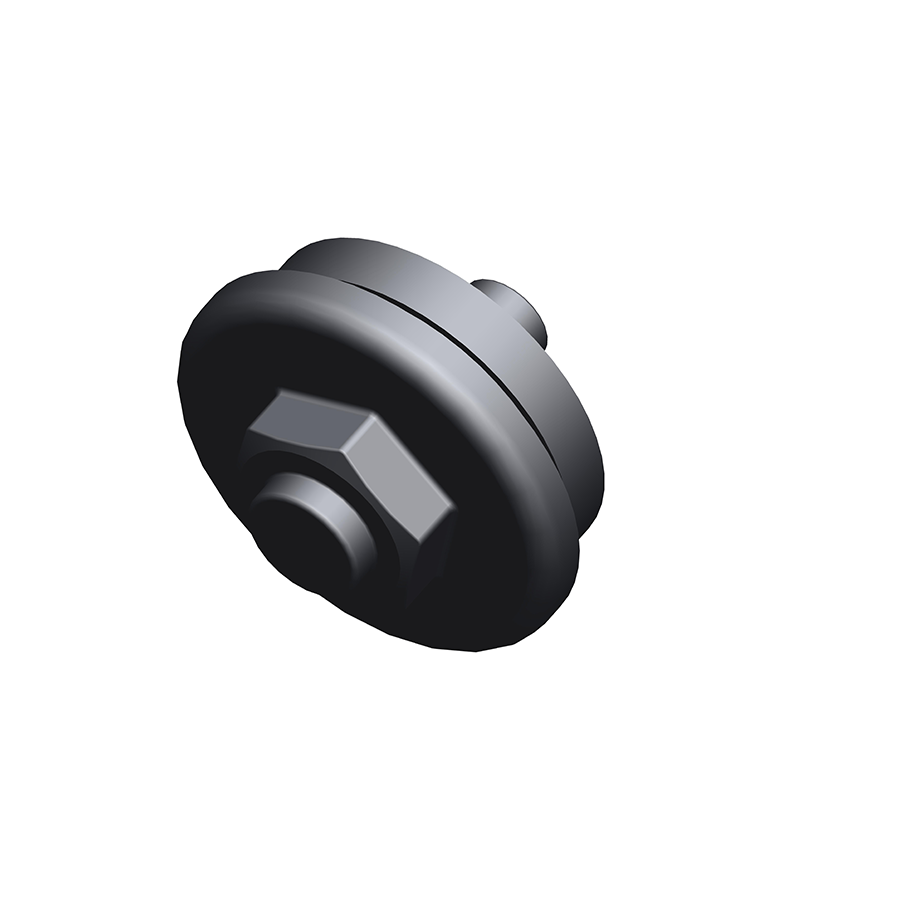

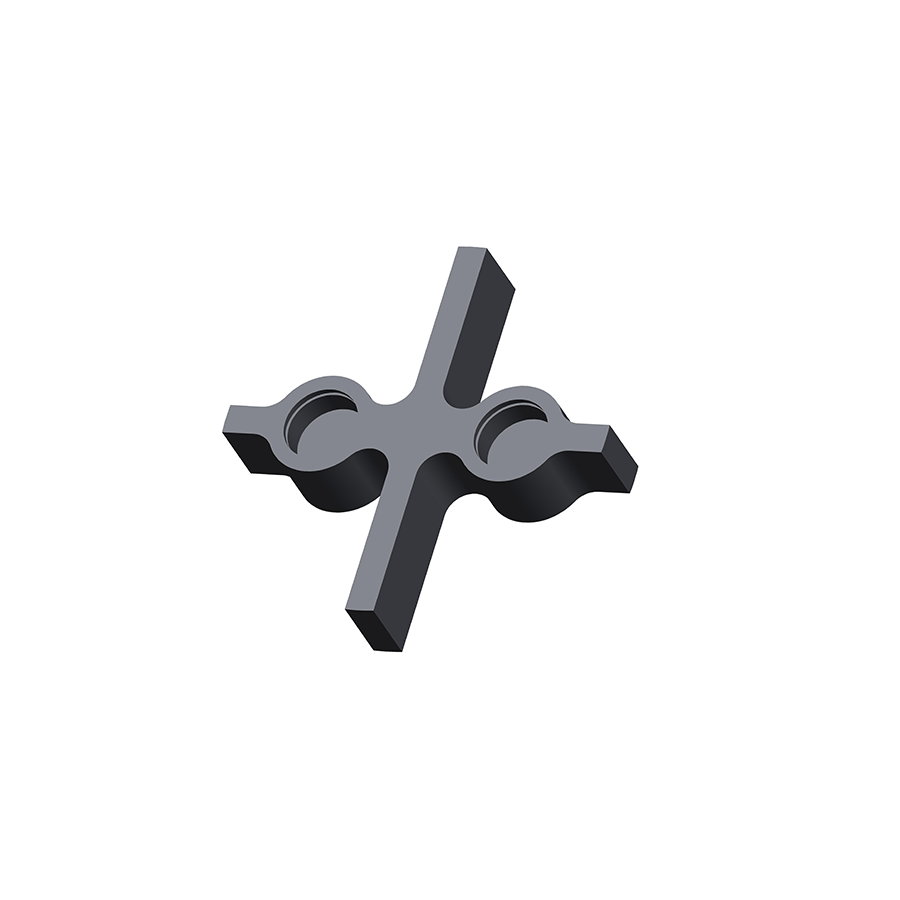

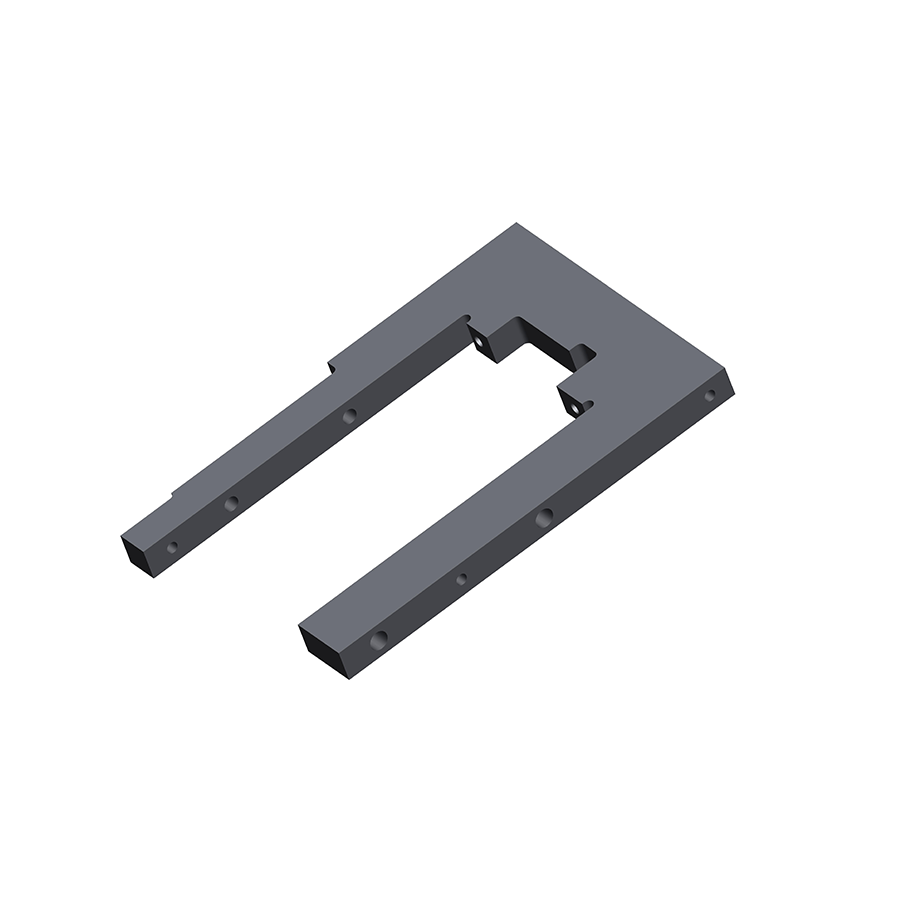

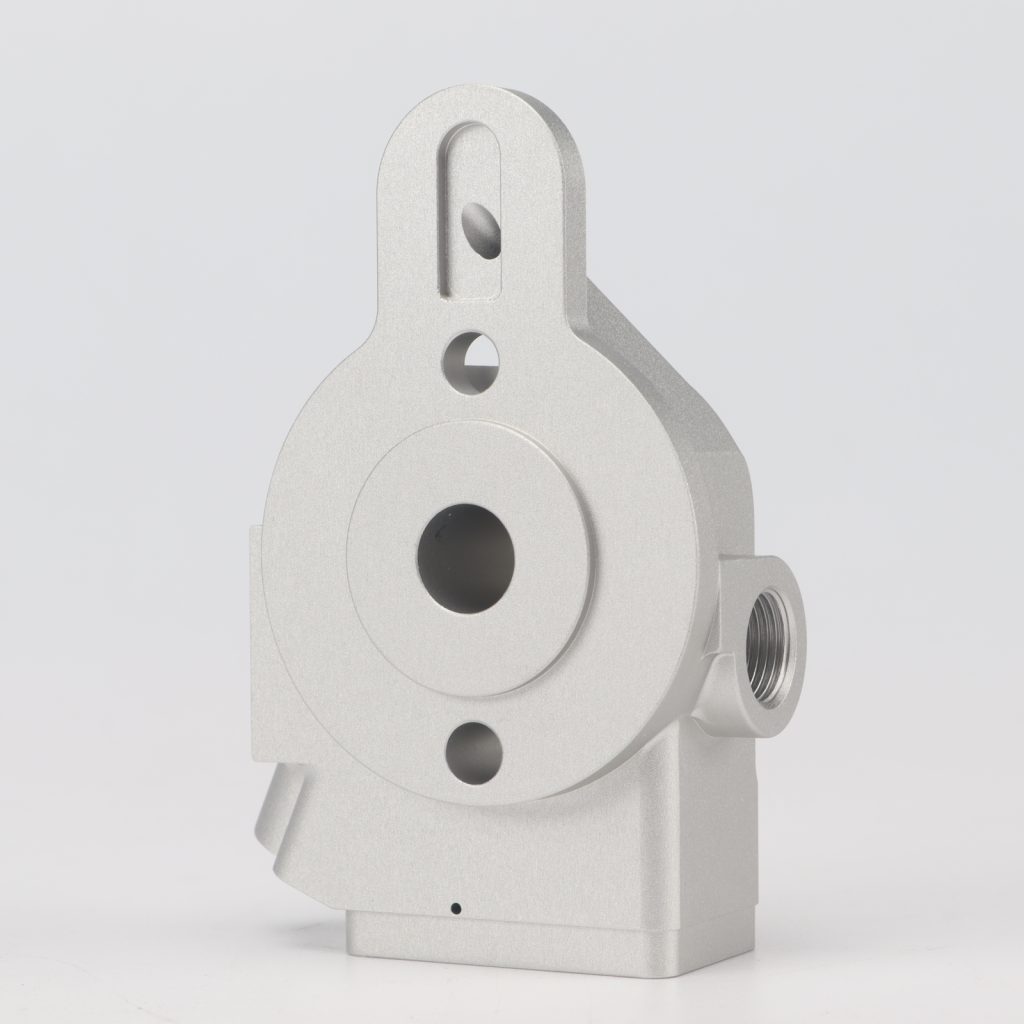

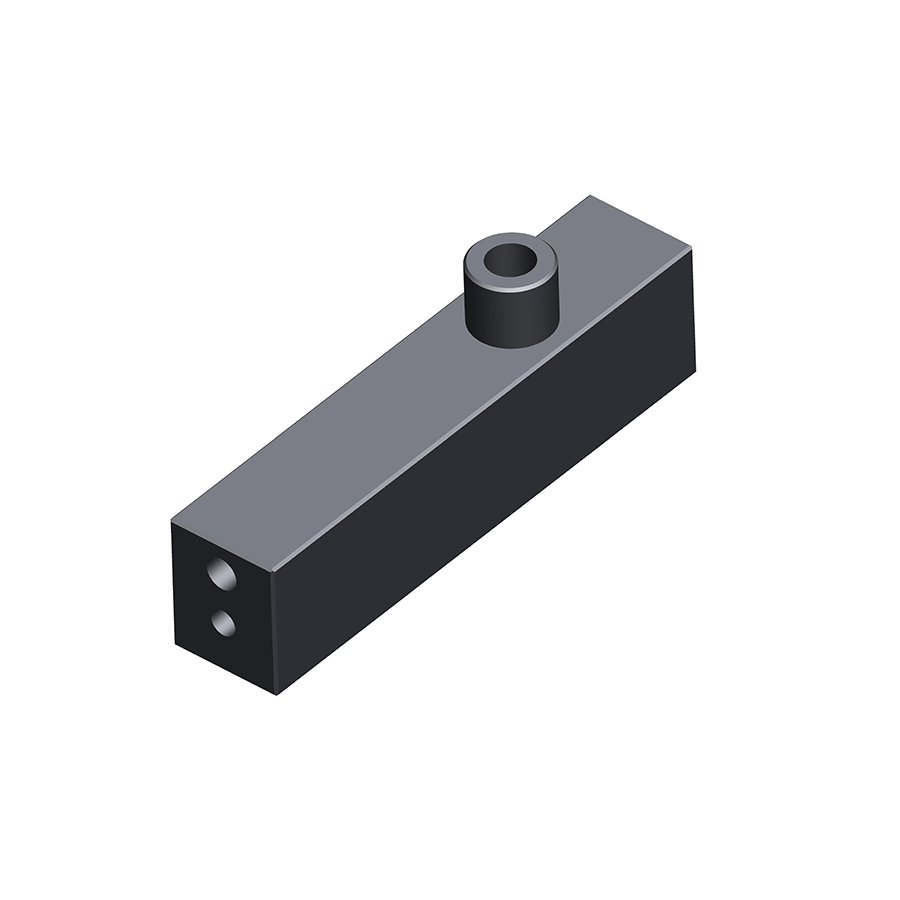

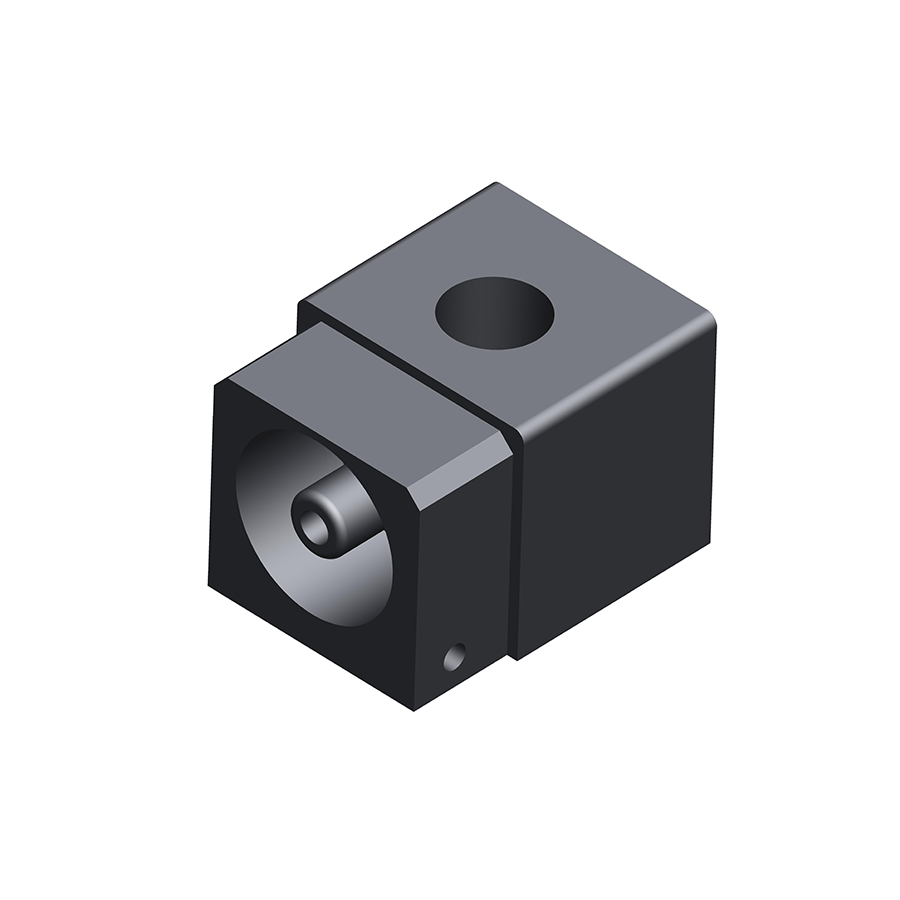

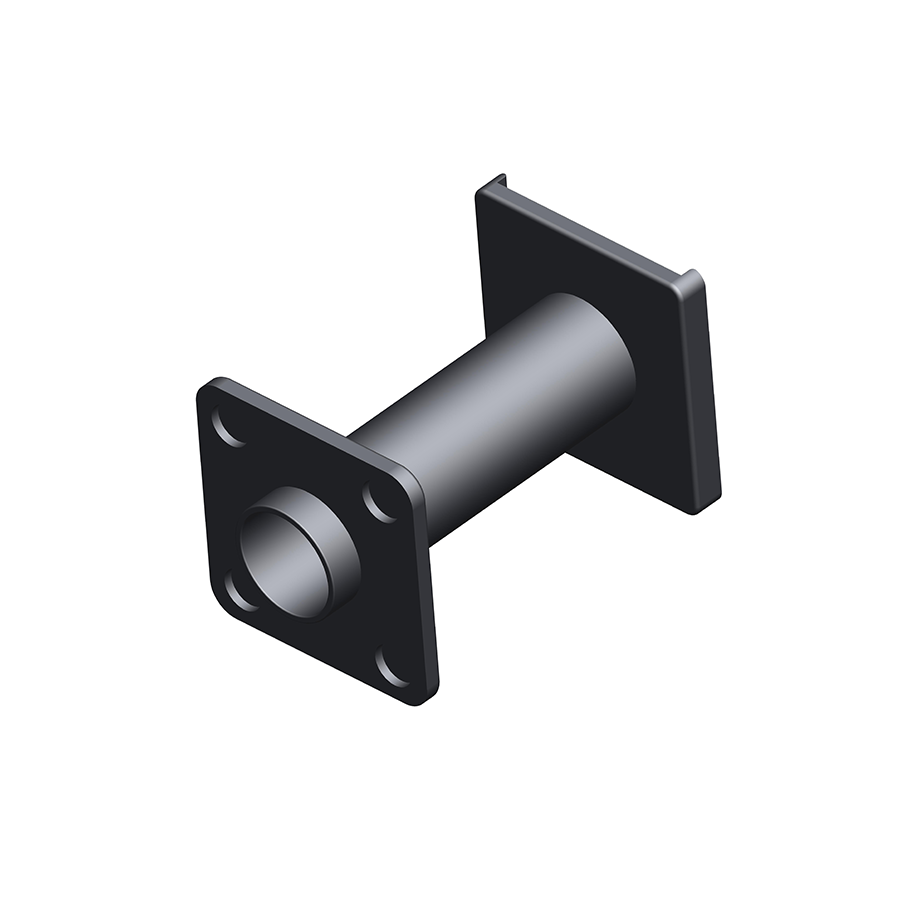

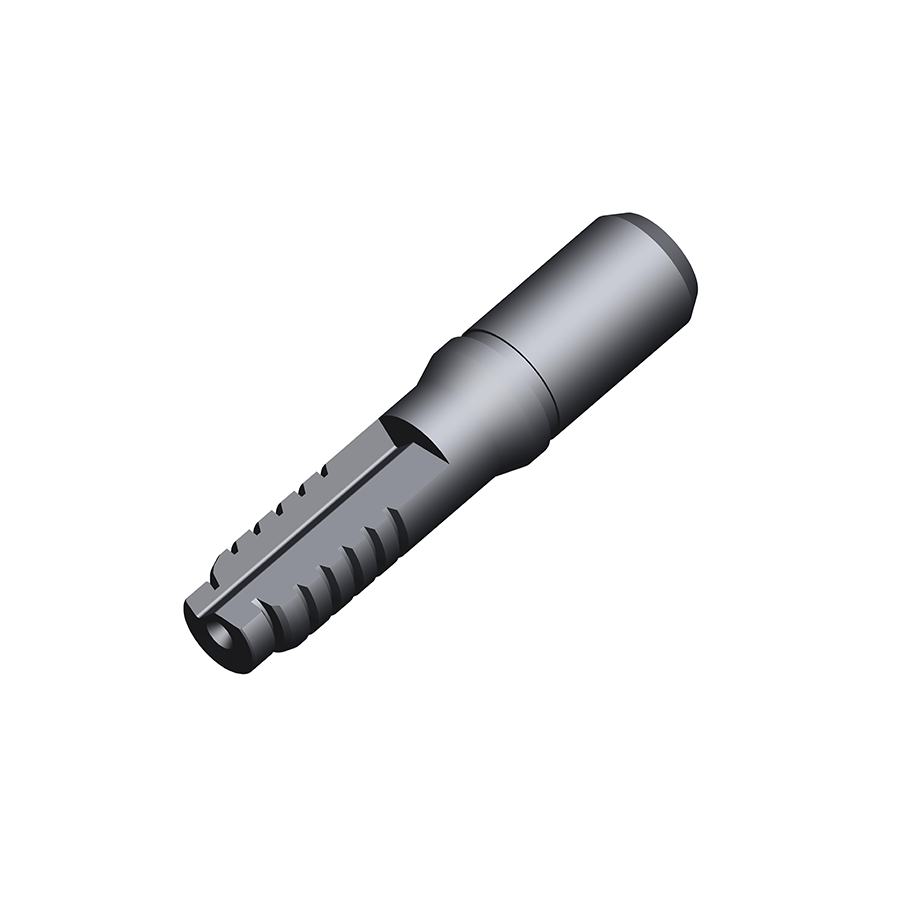

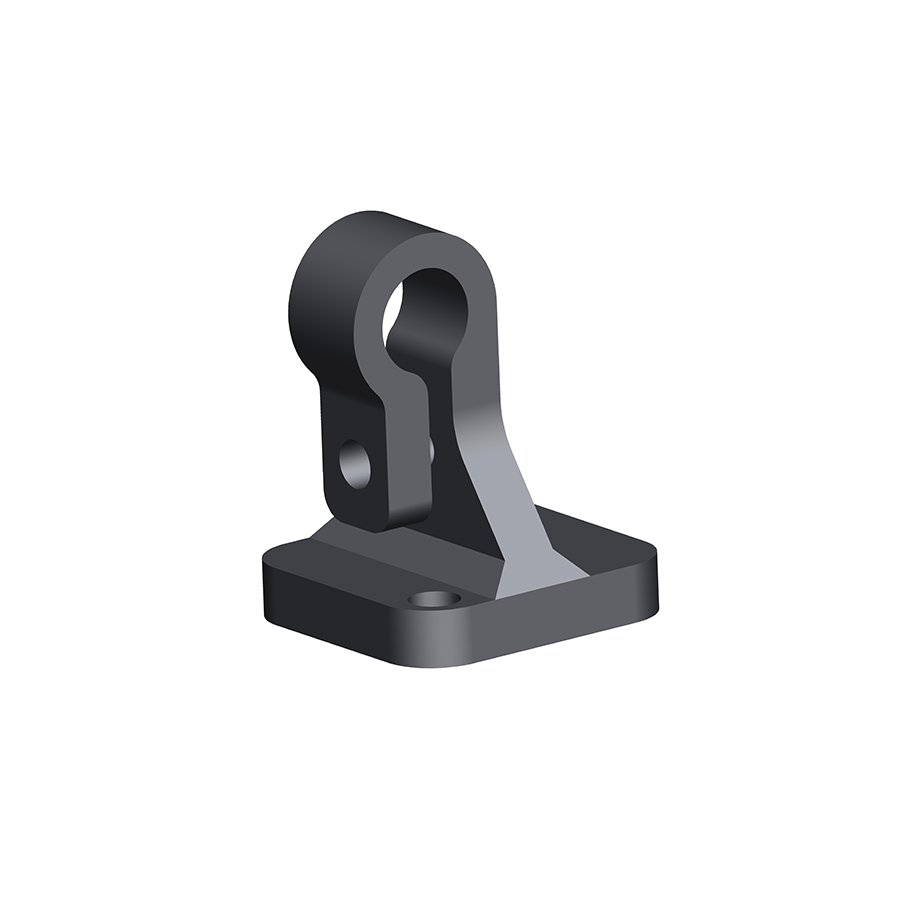

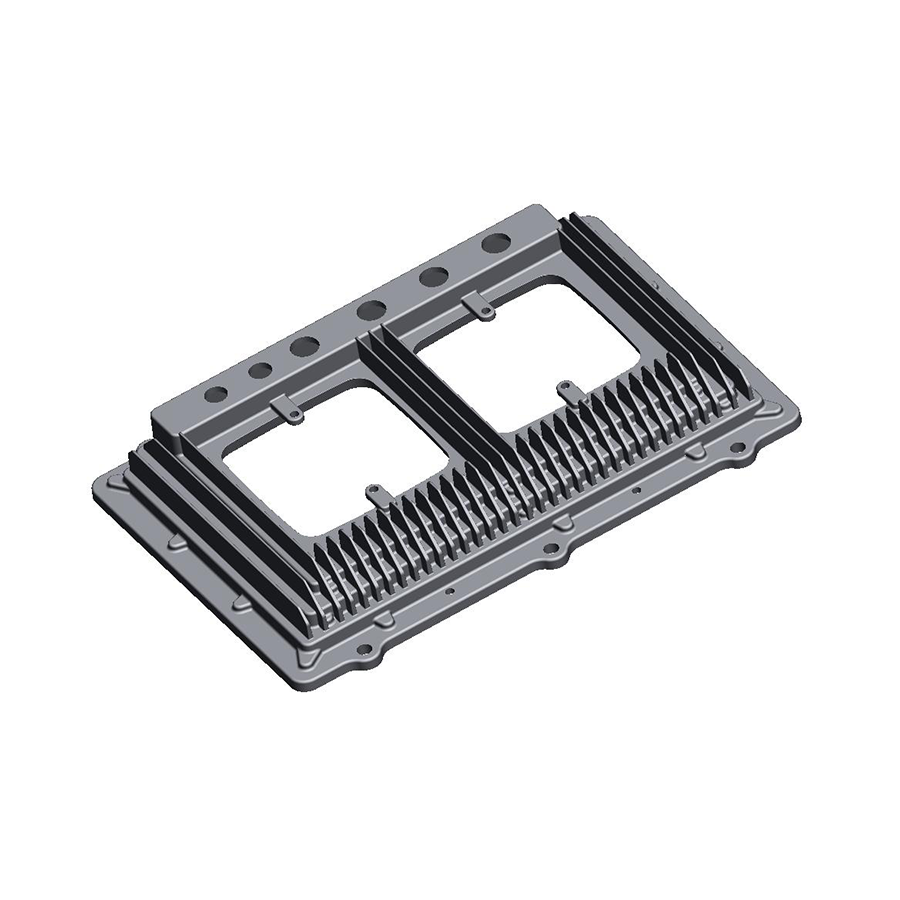

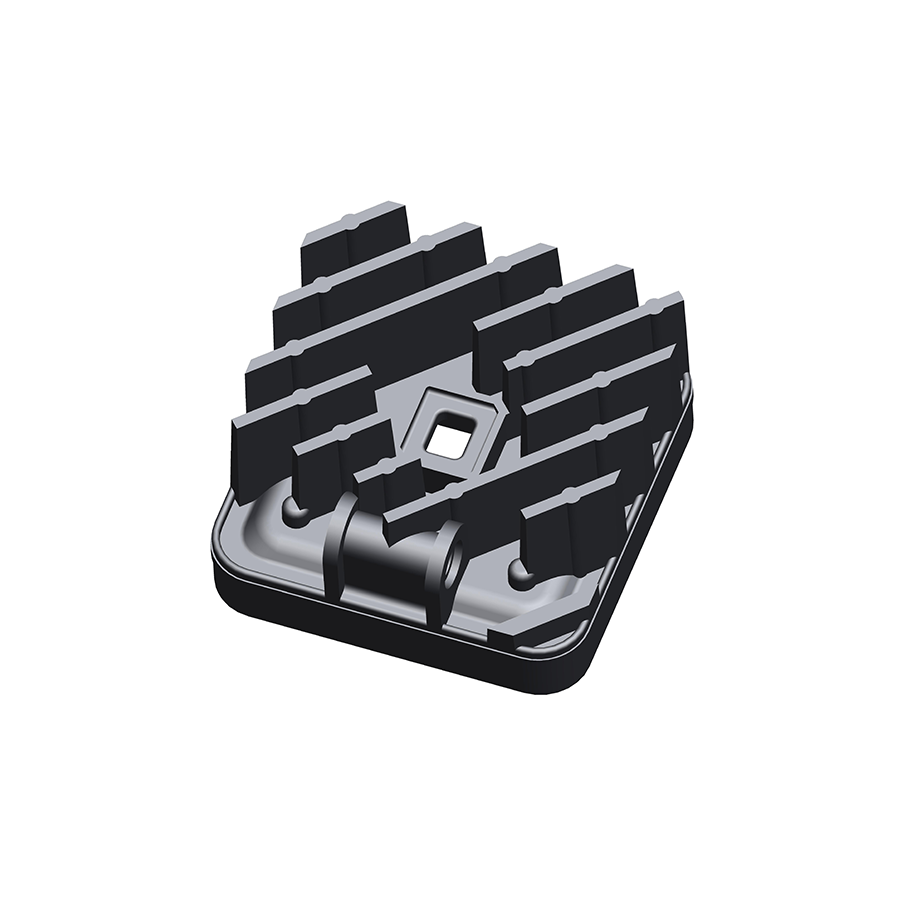

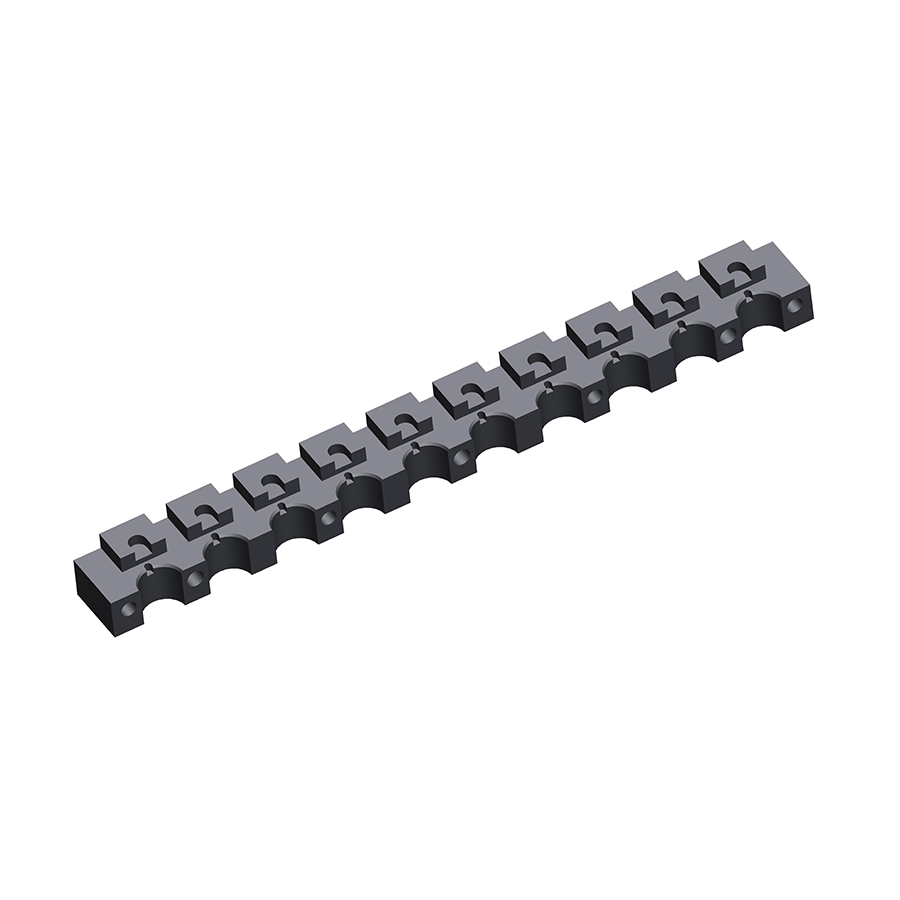

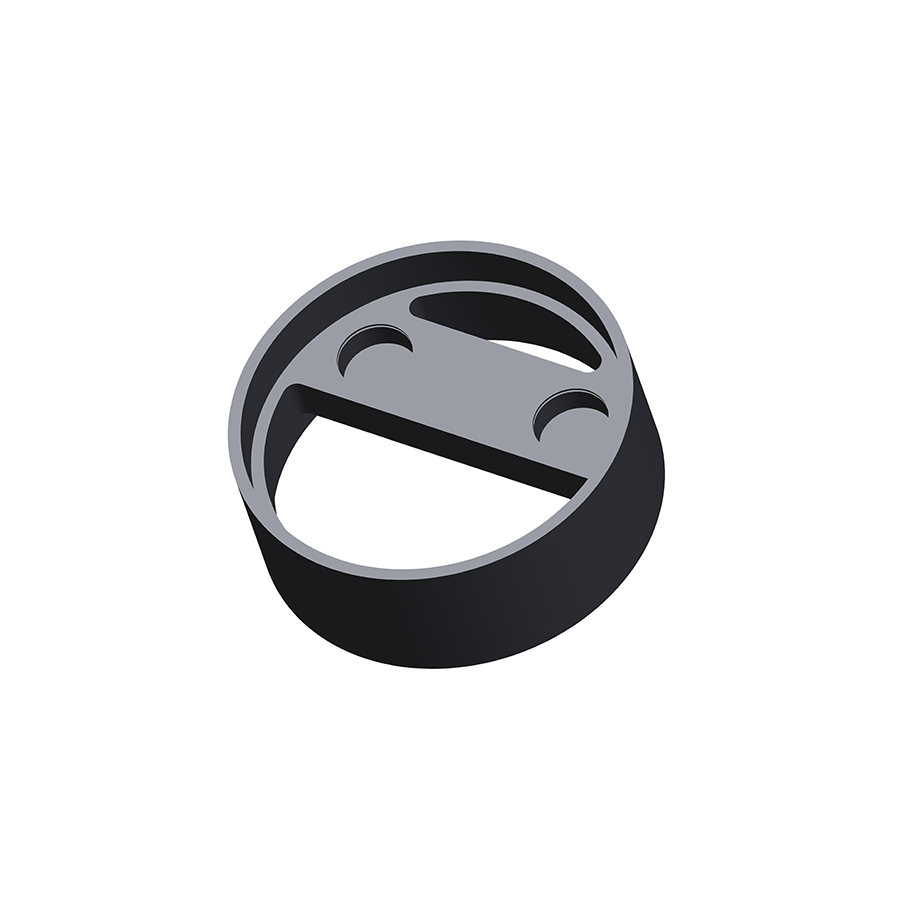

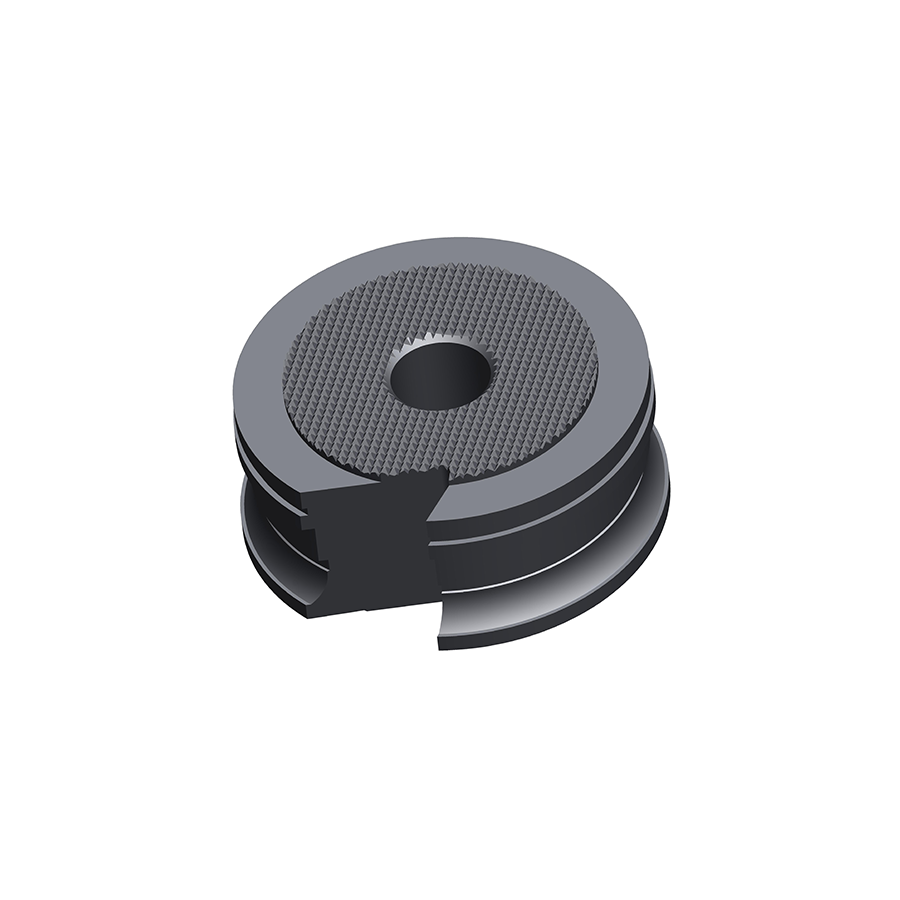

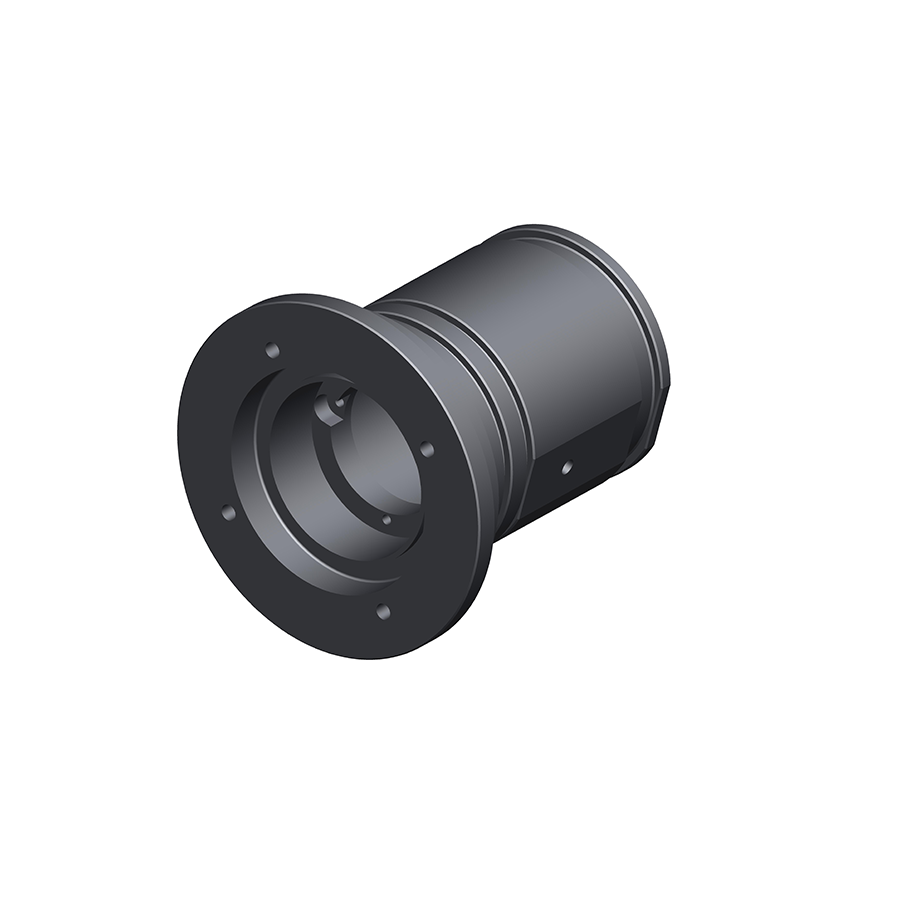

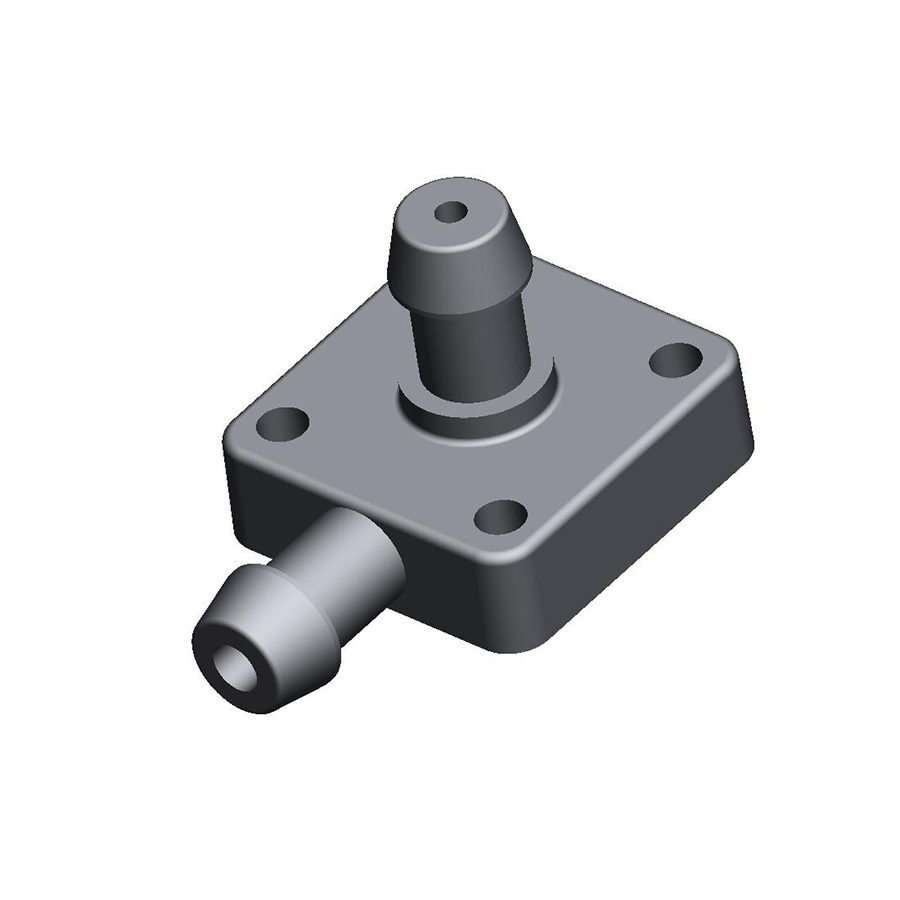

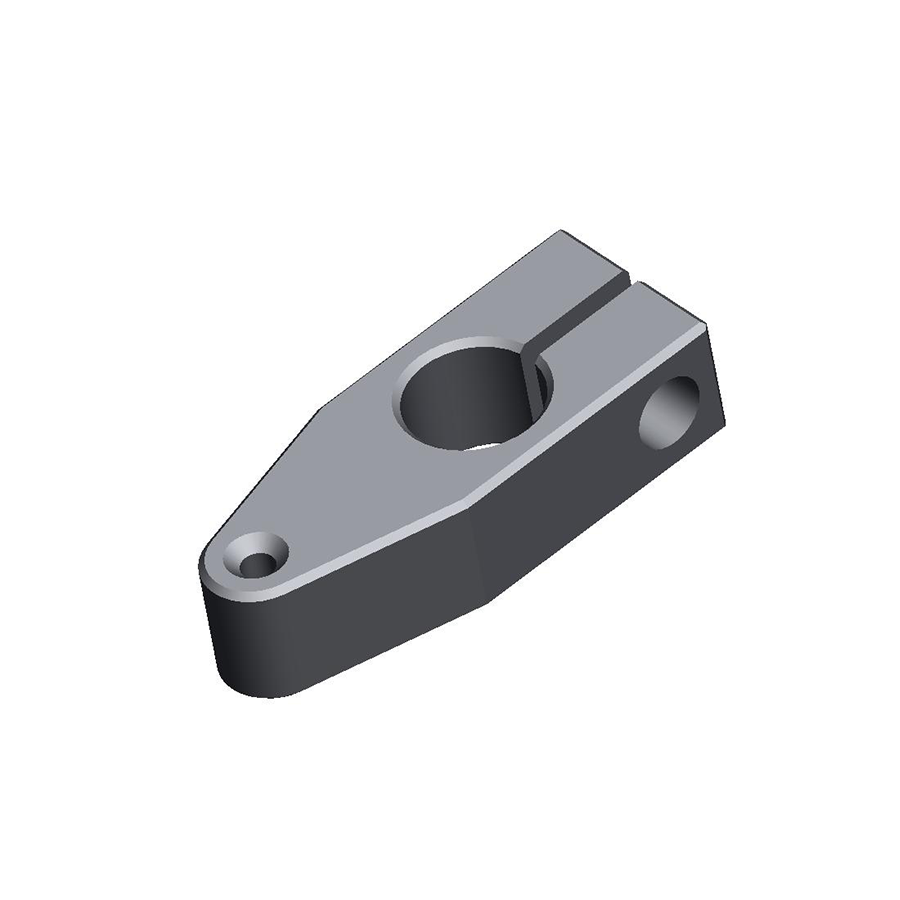

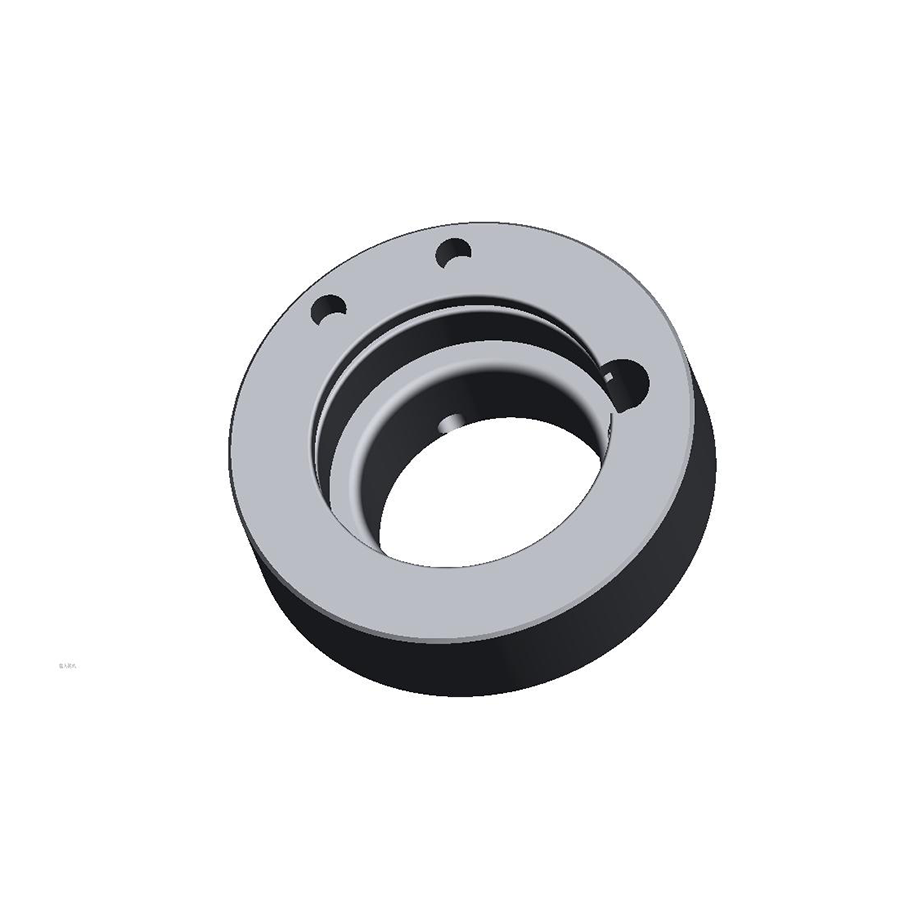

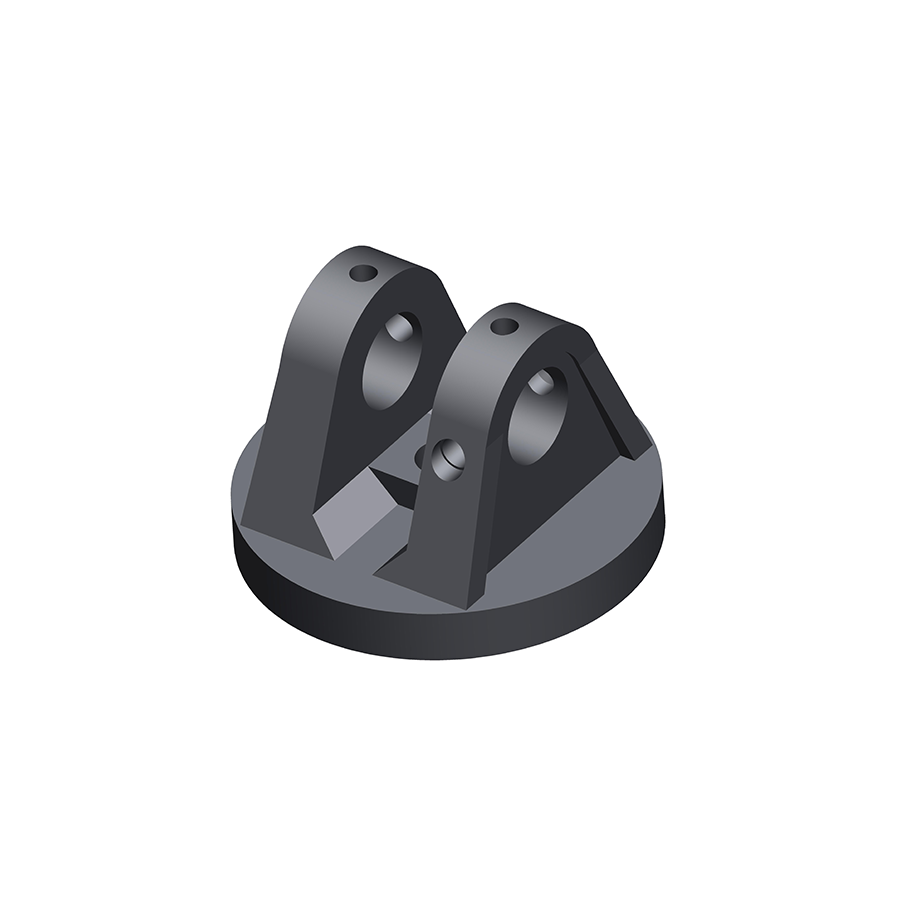

Quick Start Design

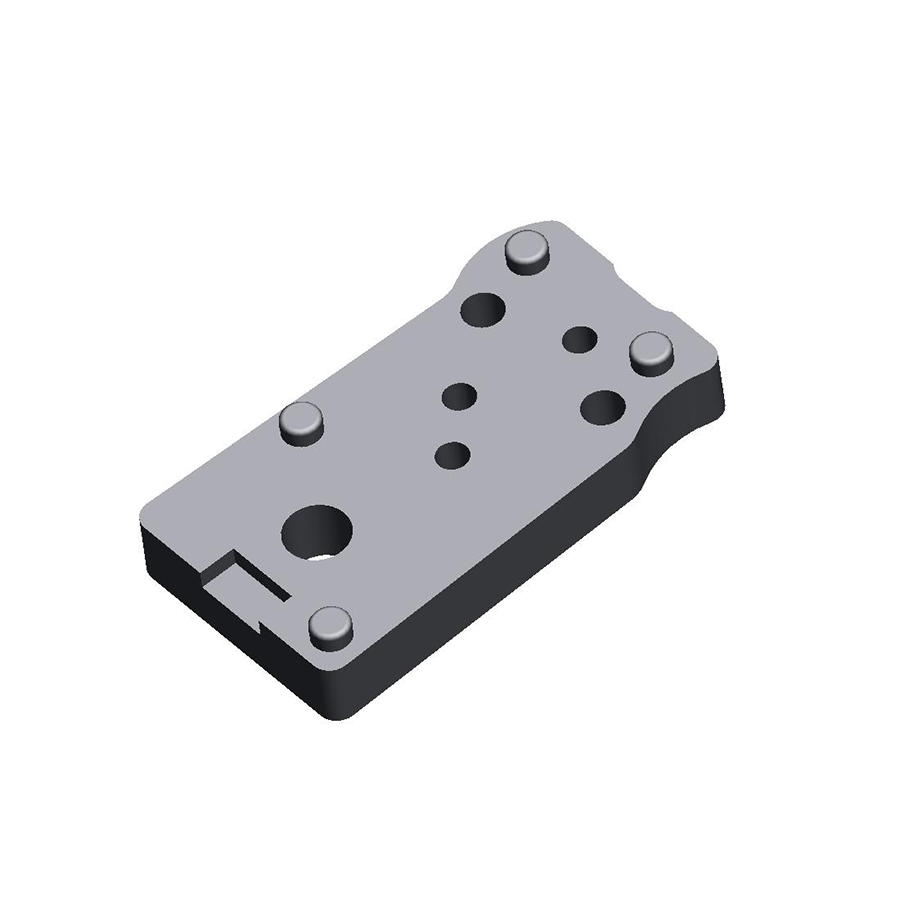

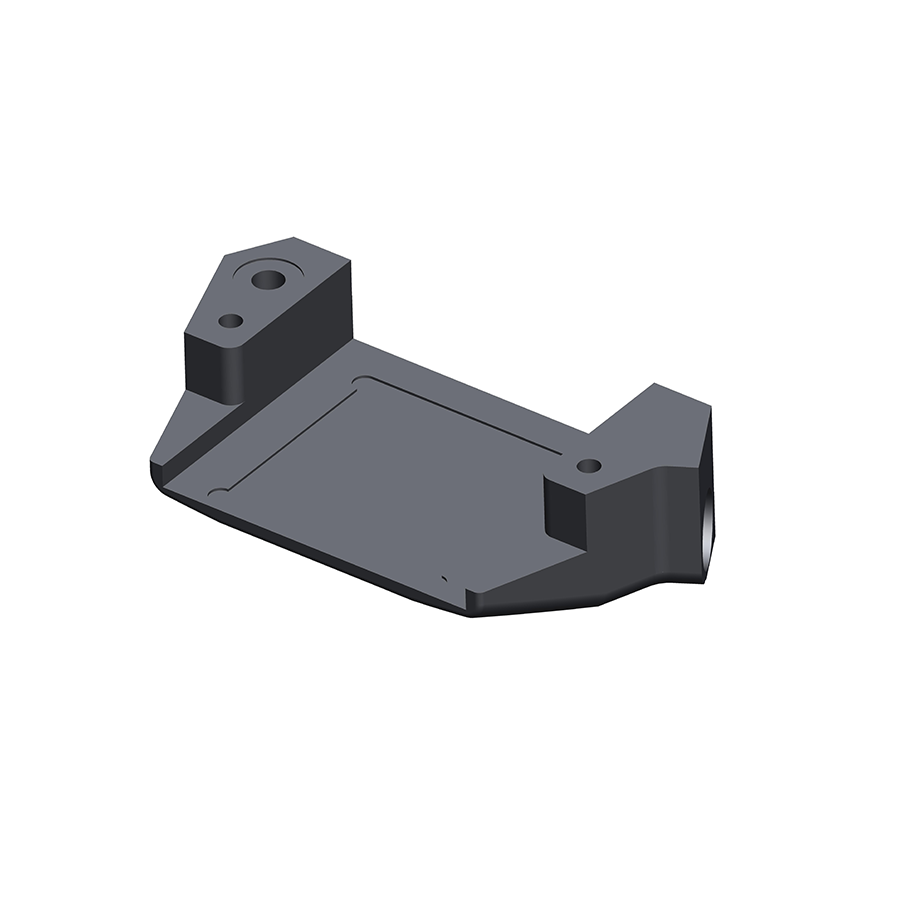

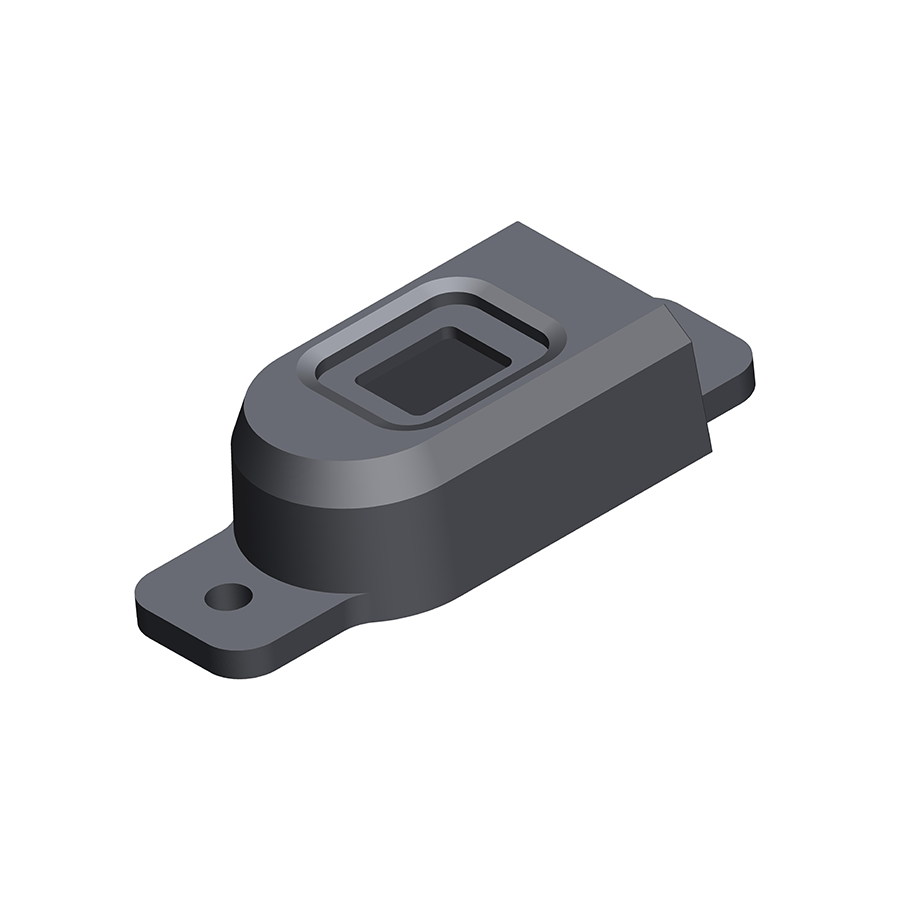

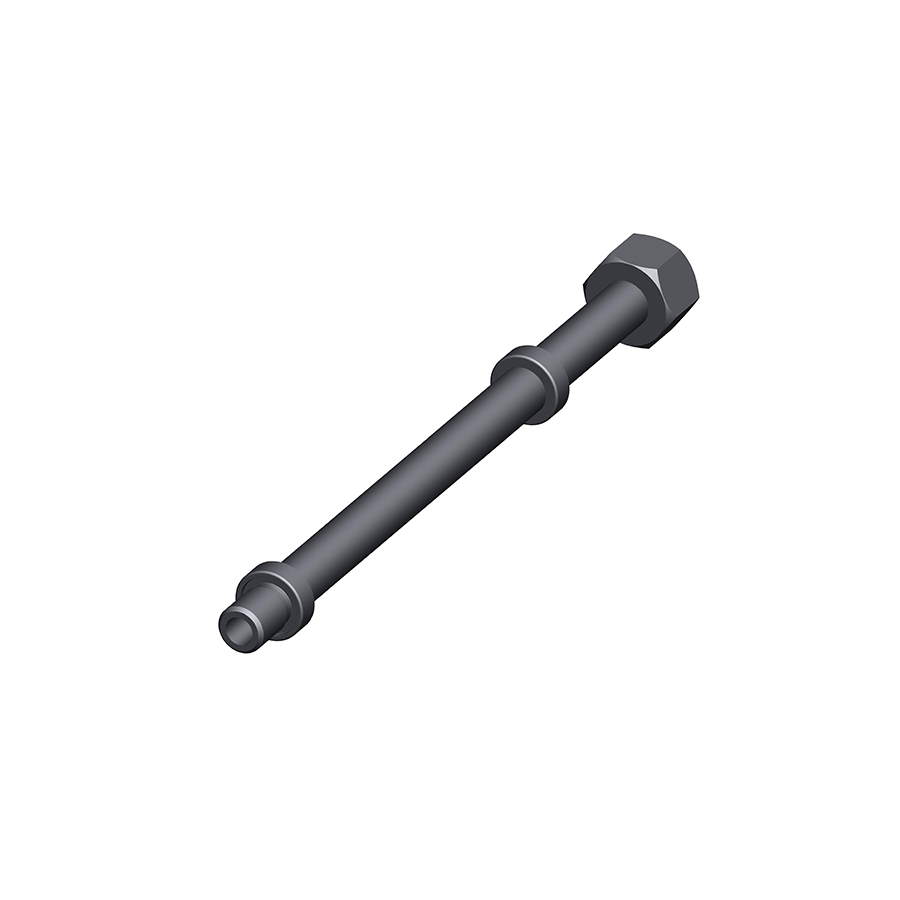

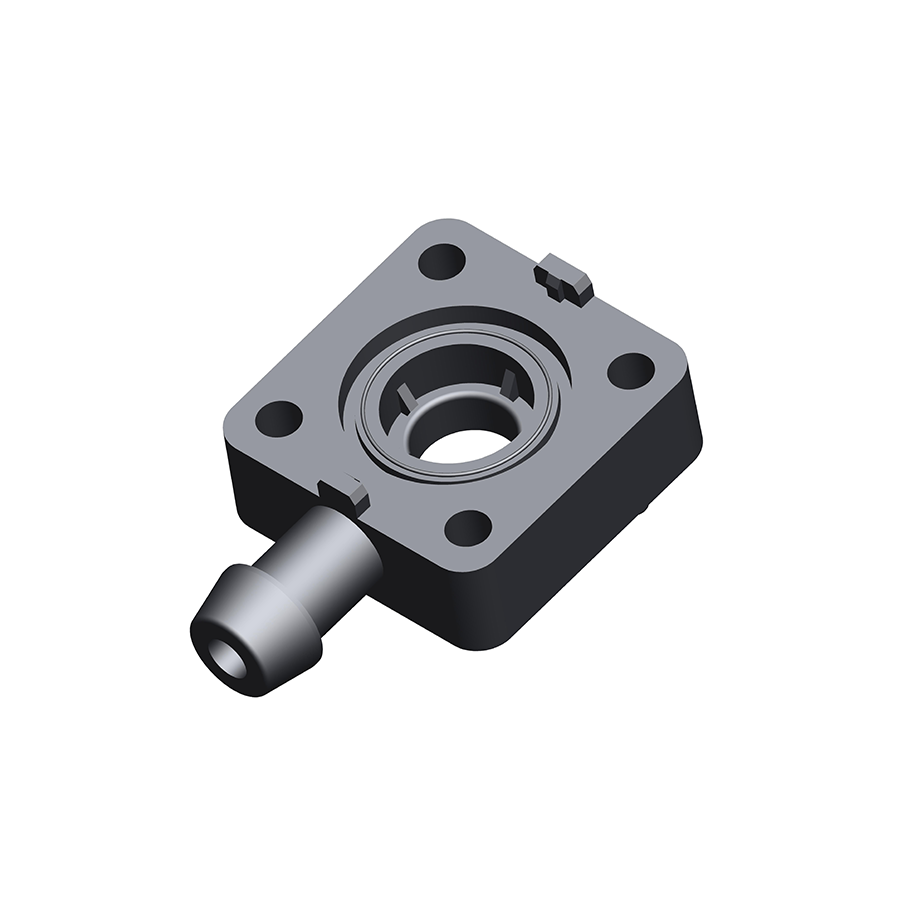

The following are the part styles we have produced for your reference. If your drawing is not complete, our designers can help. You can convey your ideas to us or provide draft files, we will provide you with 2D and 3D design drawings.

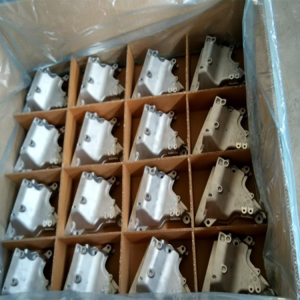

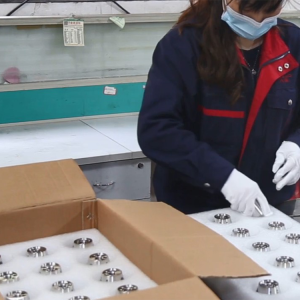

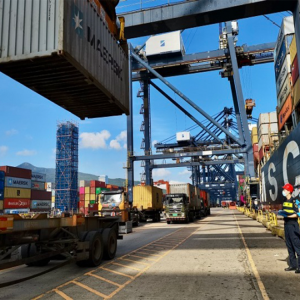

Packaging & Shipping
Every metal/plastic part is packed well with wooden case or carton. The original product can design and customize the outer packaging according to customer requirements and coordinate the transportation method. If you have special requirements for this, please let us know in advance.
Our Amazing Clients
TRUSTED BY OVER 1K+COMPANIES
Let's start today's first new project
How our customers comment
FAQ
We don’t have quantity requirement, from 1 part to 100,000+. Please contact us if any preferential pricing needed of special or large orders.
Dazao is an one-stop solution of custom-made parts manufacturer. including but not limited to CNC machining, injection molding, stamping and casting service.
Including but not limited to brushing, polishing, abrasive blasting, PVD, anodizing, zinc plating, chrome plating, nickel plating, blacking oxide coating, electrophoretic paint, powder coating.
Yes, Dazao can provide material certificate for your products according to your requirement.
- If by CNC machining or 3D printing, prototype can be finished in 5 working days after drawing proved
- If by mould, estimate need 20 to 25working days
- After order confirmed, we will execute the whole fabricate design (DFM) review, then can provide you a detailed production schedule
- Can provide weekly report with pictures and videos which show the machining progress
- Final inspection report can be provided before shipment
Almost all material can be used, including but not limited to aluminum, stainless steel, titanium, brass, copper, wood, plastic.
Yes, we can provide design service and send drawing back to you for your checking.
Tell us your idea or provide us draft file, we will design the drawing in 2D and 3D
Sent us your sample, we will scan it and design the drawing by ourself
Our machining tolerances can be up to ±0.005mm.
Yes we do. we sign NDA(Non-disclosure agreement) if any customer need can provide customers from design, drawing support, prototype, bulk production, custom-make packaging to assembling one-stop service.
T/T, L/C, Paypal, Western union etc.
By sea, by air freight, by train, by DHL, FedEx, UPS, TNT, EMS etc.
We take your intellectual property very seriously. Every drawing, sketch or image you upload to our system is completely secure. We use the most advanced security algorithms. Traffic on our website is secured by SHA-256 algorithm and RSA encryption.
Once you’ve placed your order, only the supplier who actually manufactured your part will have access to the part drawing. All CNC shops in our network have contracts to protect your intellectual property. If you require a special NDA, please send your request to [email protected]
We can provide more than 10000 different prototypes per month, no matter the design of the part is simple or complex. We have 70+ CNC machine tools and more than 80+ experienced technical experts.
We provide fabrication services to all industries requiring metal and polymer components. These industries include automotive, machine building, railways, aerospace, electronics, energy and many others. If you have any questions about how we can help your application, please contact us.
